Automatic Gates
Bright Industrial Group supply and install a large range of heavy duty automatic gate solutions across NSW. We pride ourselves on supplying a high quality and reliable system to suit any application.
Automatic Gates - Industrial / High Cycle
Sliding Track Gates
Vehicle / Telescopic / Commercial
· Maximum Gate Opening 20 metres
· Opening speeds up to 1000mm/sec
· Ideal for high usage applications
· Variety of Motors & Automation Options
Sliding Track Gates are ideal for industrial and high usage applications with very large gate openings.
Utilising ground tracks, the track gate can accommodate a clear opening of up to 20 metres.
This gate is designed to operate at variable speeds dependant on the type of drive technology used.
| Maximum gate opening length | 20,000mm |
| Standard gate height | Custom heights available |
| Duty Cycle | Low to very High Duty cycles available |
| Finish |
RHS Steel or Aluminium Gate infil can be customised to desired look and security Powdercoating or mill finish |
| Motor Type | 3 phase inverter, 240v, 24v or solar available |

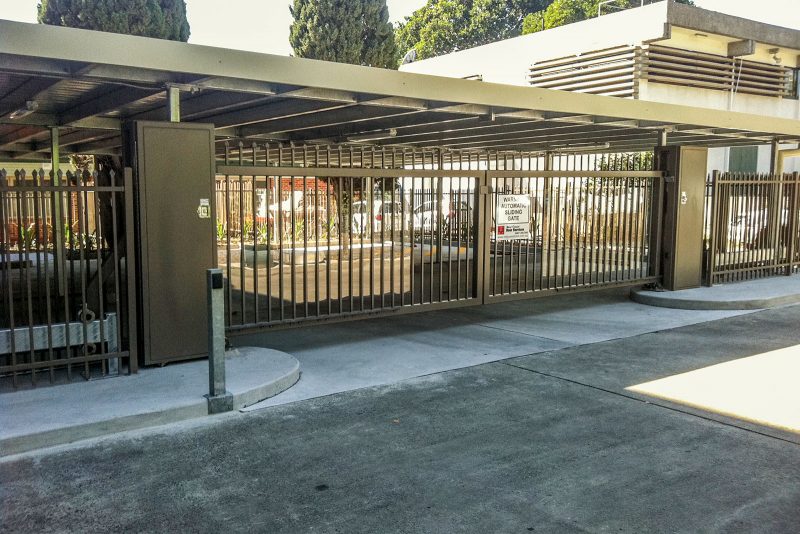

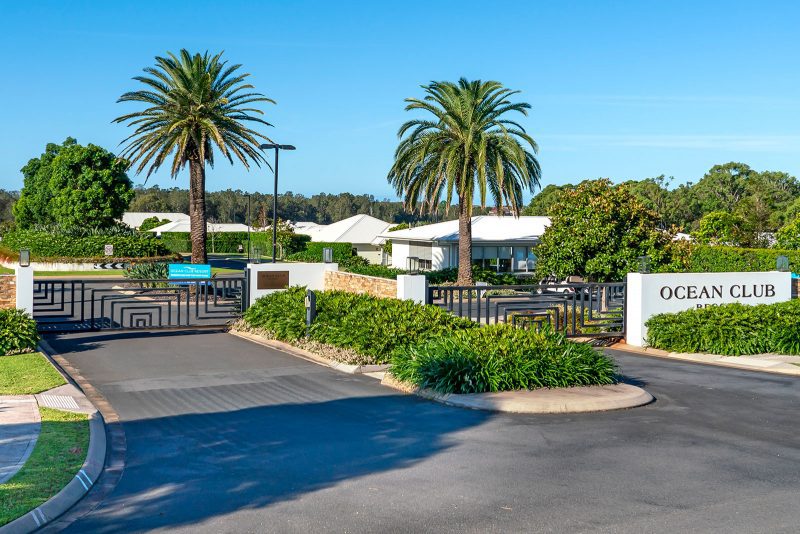

Single/Bi-Parting - Cantilevered Sliding Gate
· Heavy Duty/High Cycle/High Security
· Opening speeds up to 1000mm/sec
· Self supporting. No track required/less maintenance
· Max opening 12mSingle or 20m Bi-Parting
The Cantilevered sliding gate provides for a fast operating and efficient method of controlling vehicle passage. It is constructed for commercial, industrial and security applications. The modern design of the gate eliminates the need for ground tracks and overhead rails. Unlike standard sliding gates they don't need a perfectly level or flat surface and can deal with the ups and downs of a well used driveway.
These gates can run over the top of curbs, over dirt roads or off the side of a bank. The cantilever system and customised options allow for a variety of motors and controllers to be installed dependent on the duty cycle of the gate. The general use cantilevered gate can be made with many different infill styles however it is usually made with vertical pickets or securamax mesh and high security speartops or razor wire can be fitted to the top.
| Maximum gate opening length | 20,000 (bi-parting) |
| Standard gate height | Custom heights available |
| Duty Cycle | Low to very High Duty cycles available |
| Finish |
RHS Steel or Aluminium Gate infil can be customised to desired look and security Powdercoating or Hot Dipped Galvanised |
| Motor Type | 3 phase inverter or 240v available |
Single/Dual Swing Gate
· Opened from 90-120 degrees
· Max opening 7m for single leaf or wider for pair
· Single, dual or bifold opening
Swing gates can be either single or dual leaf and can be operated manually or automated with bi-fold options also available. Industrial swing gates are an alternative to cantilevered sliding gates where there is not sufficient room to slide the gate. Swing gates can be made for either intensive or general use and are made with heavy duty bearing hinges fitted to steel posts. Swing gates can opened from 90 - 120 degrees.
Industrial swing gates can be used for works depots, mining sites, substations, car parks, airports or anywhere high cycle traffic control is required. Industrial swing gates can be made with various infill styles to achieve the desired look however wind resistance on the face of the gate needs to be taken into consideration. Industrial swing gates can be automated via hydraulic or harmonic arm motors depending on the required speed, duty cycle or size of gate
| Maximum gate opening length | 7,000mm single, 14,000mm pair |
| Standard gate height | Custom heights available |
| Duty Cycle | Low to very High Duty cycles available |
| Finish |
RHS Steel or Aluminium Gate infil can be customised to desired look and security Powdercoating or mill finish |
| Motor Type | 3phase inverter, 240v, 24v or solar available |

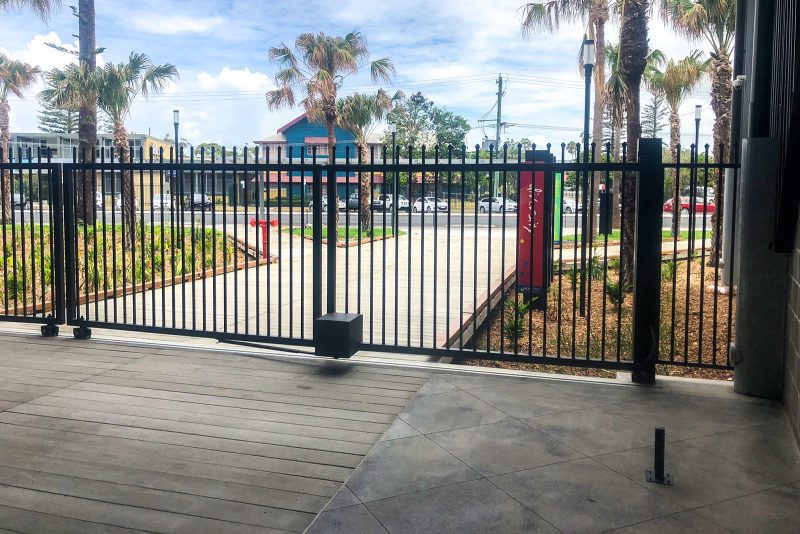

Bi-Fold Gate
· High Speeds - reduces delays on entering & leaving
· Max opening of 20m
· Single leaf span of up to 5 metres
The Bi-Fold gate offers a solution where swinging and sliding room is limited.
Bi-fold gates can be made with or without a track and have quick opening and closing speeds which allow gates to operate in high traffic applications while providing security of a perimeter gate.
They can also be tailored to suited various width and heights.
| Maximum gate opening length | 20,000mm |
| Standard gate height | Custom heights available |
| Duty Cycle | Low to High Duty cycles available |
| Finish |
RHS Steel or Aluminium Gate infil can be customised to desired look and security Powdercoating or Hot Dipped Galvanised |
| Motor Type | 3phase inverter, 240v or 24v available |

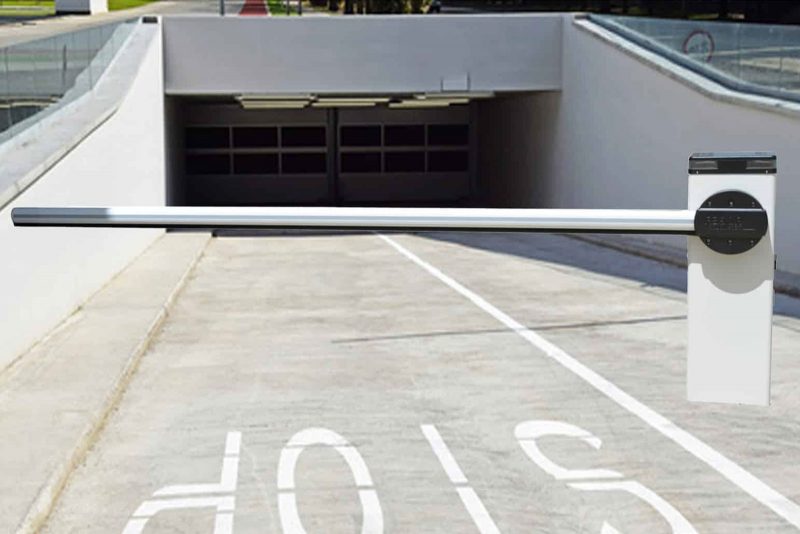

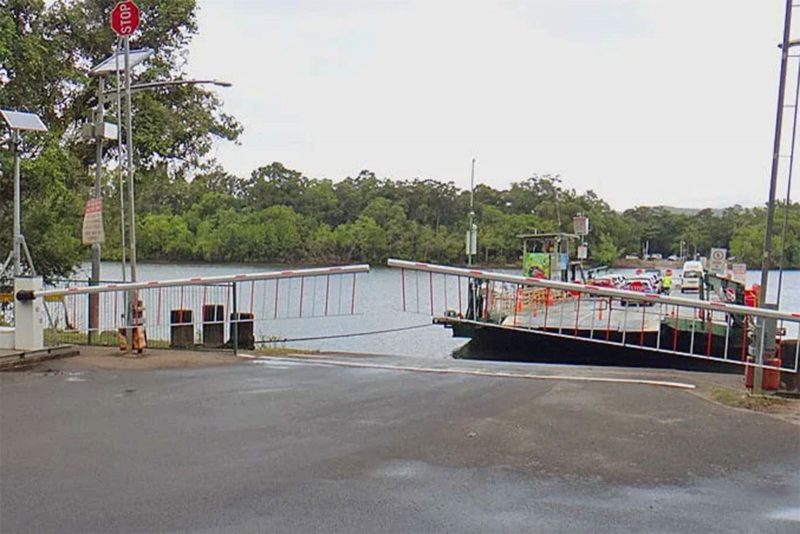

Boom Gate
· Easy solution to restrict vehicle access
· Automatic and manual solutions
· Mechanically tough and durable
· Extremely high duty cycle available
Boom gates and barrier gates act as the first point of security in car parks and apartment complexes to restrict traffic flow. They are also an excellent way to monitor and control traffic. Advanced features provide smooth operation, instant reversing, superior safety sensing, tough 100% duty cycle and low power consumption at an affordable price.
Many different models are available to suit any application whether it be an industrial mine site, caravan park, car park or hospital we have a solution
| Maximum gate opening length | 8,000mm |
| Standard gate height | 1,000mm |
| Duty Cycle | Low to High Duty cycles available |
| Finish |
RHS Steel or Aluminium Gate infil can be customised to desired look and security Powdercoating or mill finish |
| Motor Type | 3 phase inverter, 240v, 24v or solar available |
